The 5G-ACIA Demo Wall represents the latest state of the Industrial 5G Ecosystem. Market-available devices like routers, dongles, and modules are shown, and certain applications of 5G for industrial communication are demonstrated. Furthermore, the Demo Wall shows the network equipment like radio access and core networks needed to set up an Industrial 5G network.
Industrial 5G-Routers
TC Router 5004T-5G EU
- Industrial 5G-Router
(5G SA/NSA, fallback on 4G) - Layer 2 tunnel for fieldbus communication
- Device and Update Management
(TC Router Online Manager) - Firewall, IPsec and OpenVPN
- 4 digital inputs, 2 digital outputs
CELLULINK 6501T-5G GL M25 / M40
- Industrial Outdoor 5G Router
(IP 69K & IK10), PoE powered - IEC 62443-4-2 certified
- Integrated 4×4 MIMO antennas, Dual SIM, GNSS
- Layer2 tunnel for fieldbus
communication - Device and Update Management
Wireless Router 5G
- Release 15 device
- Managed LAN
- Poe/PoE+ PSE
- Routing
Wireless Bolt 5G
- Release 16 device
- Edge computing
- VXLAN layer 2 tunneling
- Industrial Ethernet,
Single Pair Ethernet,
CAN, RS-485 and IO-Link - IP 67 form factor optimized for AGVs and switch cabinets
owa5X RedCap
- Redcap device for heavy industrial vehicles
- WiFi, Bluetooth 5.0
- Eth T1 or Eth TX
- 4x CAN FD, USB, 2x RS-232
- 12 digital I/Os and 4 analog inputs
CCG-1500
- Dual SIM slots
- RS-232/422/485 serial port
- Wide temperature range
- High-throughput performance
- Low power consumption
SCALANCE MUM856-1
- Can be directly mounted on
stationary or mobile components - IP65, -30°C to +70°C
- IPv6 support
- Support of 4G/3G whenever 5G isn’t available
- VXLAN support for wireless
PROFINET communications
SCALANCE MUB852-1
- Industrial 5G Router for cabinet use
- IP20, 0°C to 55°C
- Support of 4G/3G whenever 5G
isn´t possible - Usable in public and private
5G networks - VXLAN support for wireless
PROFINET communications
NB1800 5G Industrial Router
- 5G-NR, LTE-A-Pro, UMTS
- 2x Micro SIM
- Dual Band IEEE 802.11ac
- 2x Gigabit Ethernet, 1x SFP
- CE(RED), UKCA (RER)
- Serial/Fieldbus: RS-232/485
- Software: Firewall, VPN,
Routing, Network Services,
LXC, Link Management
Connectivity Edge Gateway EGW-02
- Flexible software architecture, enabling ABB community and partners to add customer value through custom applications
- Easy installation and commissioning
- Edge computing for producing additional value for customers and saving on data bandwidth
- State-of-the-art cyber security, keeping drives protected while connected
- Remote device management
R1900 Series 5G
Ruggedized Router
- Highly ruggedized
- GNSS/GPS-enabled
- Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services, as well as remote management, trouble shooting and analytics
- 4Gb Ethernet / USB / Serial ports
R980 Series 5G
Ruggedized Router
- Highly ruggedized
- GNSS/GPS-enabled
- NetCloud provides connectivity, network, security, location,
and IoT services, as well as remote management, trouble shooting and analytics - 4Gb Ethernet / USB / Serial ports
Industrial 5G Routers/Modules/Dongles
Industrial 5G Fieldrouter FRRO503x
- Supports bands in 4G and 5G
- Ruggedized with IP67 protection
and anti-vibration design for
harsh outdoor conditions - Support for: PROFINET, Modbus,
OPC-UA, EtherCAT, Nokia MX Boost - Seamlessly onboarded and
managed via Nokia Industrial
device management
UE1010
- NR/LTE/WCDMA Full Band
- 3GPP native 5G LAN
- Lightweight ultra-compact design
- Low power consumption:
static 1W, maximum 8W - Optimized fast start up time:
less than 30 seconds - Extended lifecycle design, over
100,000 On/Off Cycles
KCELL 5G
- 5G rel 17 industrial gateway
- TSN cellular-to-ethernet for
flexible real-time communication - Public and private network support, world-wide certifications
- Top cellular speed of 4.95 Gbps ⇔
2 × 2.5 Gbit Ethernet - KontronOS and local management
IB17M-W 5G M.2 module
- Integrated GNSS
- M.2 form factor
- Latest 3GPP Rel.17 features
- 4×4 DL MIMO, 2×2 UL MIMO
- Global SKU
- 2x SIM Interfaces
Industrial 5G Dongle DGRx501x
Supports a wide range of bands in both 4G and 5G
Designed for both indoor and outdoor use cases, it meets high standards in vibration tolerance
Seamlessly onboarded to the network and managed via Nokia Industrial device management
NDQ-1300-EU SKU
Supports global bands
CE certified
Qualcomm chipset
Fieldbus Communication over 5G
UE1220
- 3GPP Native 5G LAN
with IEEE Bridge Compatibility - Plug & Play of devices with Layer 2
industrial protocols - 8ms@99.999% deterministic one-trip latency by dual connectivity based redundant user plane paths
General Purpose Industrial PC with integrated TSN over 5G DS-TT (device side TSN Translator) function and TSN enabled Ethernet Bridge for Field Bus Communication
3GPP Release 16 UE modem
Clock synchronization function between the PTP Timing domains
Assisted hold and forward mechanism (Time-aware scheduler) by the TSN bridge
Live Demo:
Profinet over 5G
Real-time transmission of Industrial protocols via private 5G networks
VXLAN tunnel between two automation systems (CPU + dezentralized I/O) with the help of a private 5G network
PROFINET I/O over 5G
Safety over 5G
Live Demo:
PROFISafe over 5G
- PROFINET / PROFISafe over 5G
- Layer2 tunneling
- Emergency stop function
- Setpoint monitoring
Live Demo:
CIP Safety over 5G
5G Devices
Smart-Ex 03 DZ1
- 5G / WiFi6 intrinsically-safe ultra rugged smartphone
- Latest Android Operating System, Android Enterprise Recommended (AER)
- European inhouse development
- Global support network (in 80+ countries)
Nemo Industry Probe
- Industry 4.0 compliant, autonomous field unit for unattended,
remote-controlled measurements - 24/7 active QoS and RF monitoring
- IP65 protection for harsh industrial indoor environments
- Effective thermal control for
reliable 5G measurements
QualiPoc Android
(Crosscall Smartphone)
- Quality of Service monitoring in business critical environments
- Efficient tool for acceptance and troubleshooting tasks
- Low latency measurements including QoE scoring for multiple use cases
- On device RF trace decoding in real time
NUQ-3000M
- 3GPP Release 16
- 5G NR NSA/SA
- IP67
- 2.5G or 5G Ethernet interface
Live Demo:
5G Edge Computing
5G edge computing and interworking with RS-485, CAN and IO-Link for condition monitoring use case as well as massive sensor network use case.
Innbox W37
Small form factor
Multiple mounting options (pole, window glass, wall)
2.5GE PoE Ethernet Uplink
3GPP R16 compliant
IP65 water resistance
Management via Innbox ethernet Gateway (TR-69)
Verizon Business Internet Receiver
- Private 5G Network (on-site)
- 3GPP Release 16, 5G NR NSA/SA (QC X’65)
- LTE Category 21
- Support for n48/n77/n260/n261
- IP67, MIL spec and NEBS compliant
- 5 Gb ethernet interface
(Powered by PoE)
Industrial 5G Radio Access Networks
Open RAN
Low Power Radio Unit
Open RAN Split 7.2 for maximum flexibility and compatibility
High throughput 100 MHz (MIMO 4×4)
Supports n77, n78 and n48 private 5G bands
Supports indoor geolocation and geofencing
Ericsson Radio Dot
- Supports numerous spectrum bands, single- or multi-operator, indoor and outdoor deployments, and multiple fronthaul and power distribution options
- Frequency bands: n48, n78, n77
- Bandwidth: Up to 200MHz,
4×4 MIMO - Output power: 4x250mW

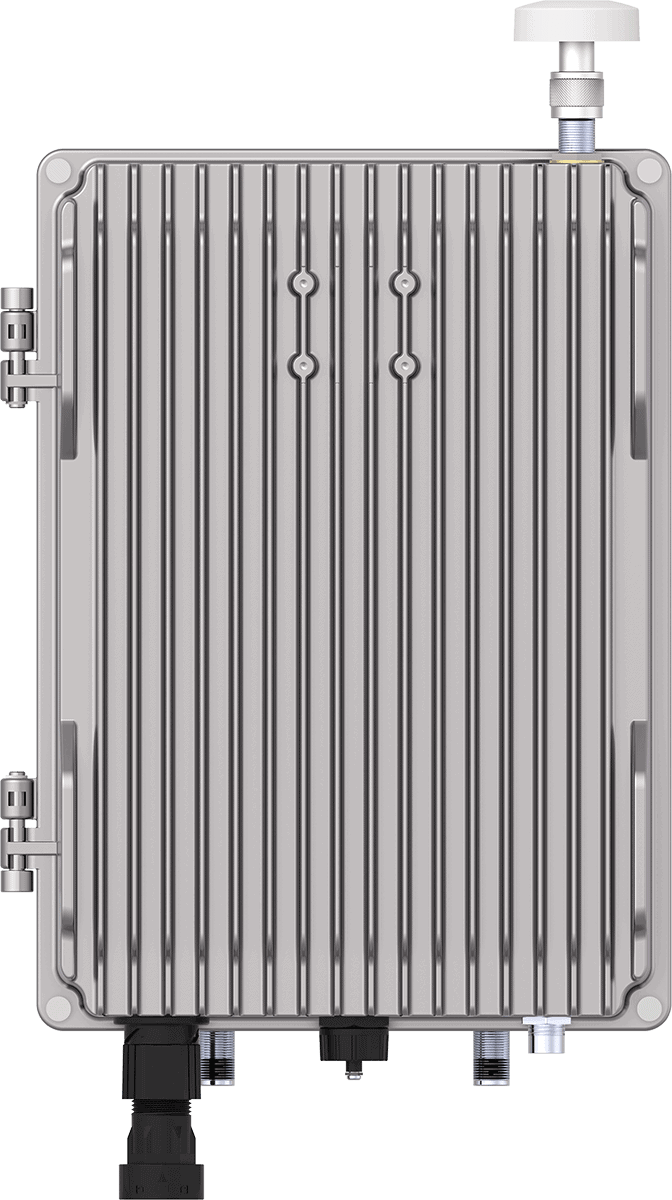

SCU 2070
n78
Data rate 750Mbps/200 Mbps
Managed by Askey autonomous management platform (AMP)
AirScale Indoor Radio System
5G pRRH
Indoor small cell radios supporting many different 5G frequency bands
Supports bandwidth up to 100MHz
Tx power up to 4x250mW
SCALANCE MRB85536M
Radio Unit (RU)
A high-performance 5G radio unit for use in harsh environments
Robust hardware with industrial connectors
Tx power up to 4x250mW
Supported bandwidth up to 100MHz
Lampsite pRRU5935
Indoor high performance radio unit of the distributed digital access system LAMPSITE
Frequency Band: C-Band with 100 MHz Signal Bandwidth
5G NR TDD 4Tx4Rx with integrated MIMO antennas
4x250mW Transmitpower
PoE and Fibre interfaces
Industrial 5G Core Networks
Video:
Core Overview
The video shows various partner solutions
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information Nokia MX Industrial Edge
MX Industrial Edge (MXIE) is running the 4.9G/5G private network core functions
As a high-performance, resilient, and secure on-premises OT edge solution it can simultaneously run applications for I4.0 use cases
MXIE is the interface to both North and Southbound systems including industrial protocols

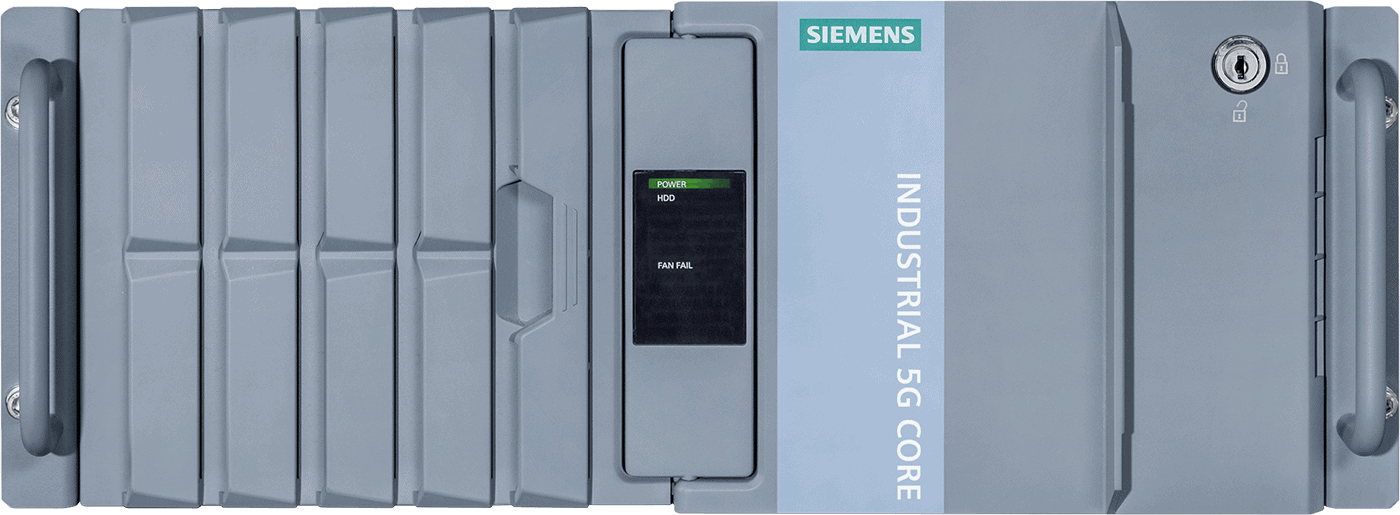

SINEC Industrial 5G Core
- Siemens‘ 5G infrastructure enables the setup of a local private 5G campus network focusing on OT
and automation use cases - Easy-to use comprehensive WebUI
allows fast comissioning - Robust industrial hardware made for the shop floor
- 100% on-premise installation
